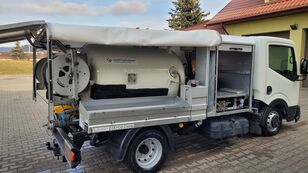

Nissan Cabstar DEFCO Combi 3.5t Dietmarkaiser
Compact, versatile specialist vehicle

– Gross vehicle weight 3500 kg – Category B driving license required
– Maximum height 193 cm, allowing easy access to underground car parks and low-ceiling garages.
– High-pressure pump – SPECK 98 liters per minute – 150 bar
– CVS GmbH / Vacustar L400R vacuum pump – capacity 345 m³/h
– Pressure drum with a new 80 m long DN13 hose (purchase confirmed by invoice)
– Supply drum equipped with 60 m of DN19 hose and a GEKA coupling. – Chassis wheelbase: 2800 mm
– Large cargo space – behind the cab there is a spacious compartment for materials requiring more space
– Side cabinet with a 40 kg load capacity (WÜRTH)
– Side trays for suction hoses for easy storage

Detailed technical specifications:

Dietmar Kaiser AG – DEFCO Combi body
– Total vehicle height: 193 cm
– 1425 l tank
– Tank division: 765 l sludge + 660 l water
– Diagonal chamber division makes emptying the septic tank easier and faster.
– Body drive from the distribution box
– Remote control with a wireless original remote
– Hydraulic control of the pressure hose reel
– Manual unwinding of the supply hose
– Italian Bazzoli/Baroni suction hose connector with knife valves. – Work lights

Chassis data – Nissan Cabstar 35.13

– Engine: 3.0 l, 96 kW (130 hp).
– Gross vehicle weight (GVW): 3500 kg.
– Payload: 590 kg.
– Year of manufacture: 2017.
– Mileage: 128,711 km.
– Regularly serviced – last entry in the service booklet at 126,205 km.
– Transmission: manual
– Reversing camera
– Chassis modifications – specially lowered chassis by Dietmar Kaiser AG
– Hand-operated disc brake on the drive shaft from the renowned KNOTT brand
– Tail light guards protect the tail light from damage in harsh operating conditions. – Tire condition: 80% tread
– New batteries
– New Exedy clutch (same as originally installed)

Summary
The Nissan Cabstar DEFCO Combi 3.5 t is a versatile and compact specialist vehicle, perfect for demanding work conditions.

Thanks to its small dimensions and high maneuverability, it is ideal for working in urban areas and tight spaces.

Efficient pumps, large tank capacity, solid construction, and ergonomic space organization make it a vehicle that will meet the expectations of the most demanding users.
